Sunday, February 25, 2018

Bently Nevada 3500 Series Machinery Monitoring System Datasheet

Bently Nevada 3500 Series Machinery Monitoring System
Machine condition monitoring combines hardware, software, and service and support – providing a broad, connected view of your operations. Together, they enable your plant to mitigate risk, boost safety, and reduce maintenance costs, while improving equipment reliability, uptime, and efficiency.

Hardware monitoring systems and sensors protect your equipment and collect rich condition monitoring and diagnostic data for analysis. Condition monitoring and diagnostics software connects real-time and historical data from production equipment to help you anticipate failure before it occurs. With scalable deployment and ongoing support service offerings, you can ensure that you’re maximizing the value of your condition monitoring program.

The Bently Nevada 3500 Monitoring System provides continuous, online monitoring suitable for machinery protection and asset condition monitoring applications. It represents our most capable and flexible system in a traditional rack-based design and offers numerous features and advantages not provided in other systems.

Download a PDF version of the Bently Nevada 3500 System datasheet here, or quickly review the embedded document below.

For more information, contact Flow-Tech in Maryland by calling 410-666-3200, in Virginia by calling 804-752-3450, or by visiting https://flowtechonline.com.


Friday, February 16, 2018

Campus Metering: Advantages of Using V-Cone for Measuring Chilled Water & Steam in Hospitals, Universities, and Institutions

McCrometer's V-Cone

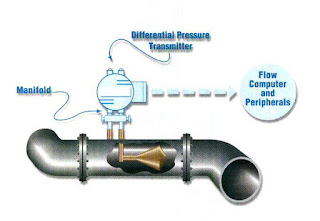

Typical diagram of V-Cone installation.
(Click for larger view).
McCrometer's V-Cone® Flow Meter is an advanced differential pressure instrument, which is ideal for use with liquid, steam or gas media in rugged conditions where accuracy, low maintenance and cost are important. The V-Cone is especially useful in tight-fit and retrofit installations.

In most instances the use of V-Cones associated with chillers for chilled water in large institutional users is a matter of space, accuracy, and turndown. The V-Cone needs very little upstream and downstream piping requirements, allowing it to be used in spaces where other meters cannot be used, or to replace existing flowmeters that never proved accurate because of space limitations.

In many large universities and other facilities, such as hospitals and airports, across the U.S., the reason for initial interest and subsequent purchases of V-Cones to measure Chilled Water was to fit within the confines of the existing and new buildings that were being used to house the chillers. Additionally, the second most important reason was the delivered accuracy. In the past, most usage had been ignored, but with the rising costs associated with cooling, each individual building must be accountable for individual use. This is just good fiscal responsibility and management from an energy balance standpoint. Turndown was an issue because of seasonal swings in usage based on climate and population in the buildings at any particular time. Therefore, the meters needed to be able to have a large flow span (turndown), which remained accurate during continuous use.
McCrometer's V-Cone
Internal view of V-Cone.

V-Cones have recently been selected for Steam service for mostly the same reasons as they are selected for Chilled Water. Space limitations in new and/or older buildings are a serious concern. V-Cones have the smallest piping requirements of practically any flowmeter and continue to deliver accurate measurement, so they are fiscally responsible and cost effective. Additionally, in steam, they allow condensate and/or other small particulate matter to pass without affecting the measurement, thus giving much better accuracy instantaneously and over time.

They are very rugged flowmeters which require little or no maintenance, and have a very long expected life even in “tough” service like steam. They can be designed with great turndown (span) and therefore can accommodate changes in flowrates based on demand, seasonal or from other factors.

For more information on V-Cone flowmeters, contact Flow-Tech in Maryland at 410-666-3200, in Virginia at 804-752-3450, or by visiting https://flowtechonline.com.

Wednesday, February 7, 2018

How To Select a Gas Flow Meter for Your Application

Gas Flow Meter

Here is some very good, basic advice, courtesy of FCI (Fluid Components International) on selecting a gas flow meter.

Match your application to the appropriate measurement technology. Accurate flow measurement starts with selecting the best flow meter technology for your application. Every application has a set of requirements that narrows the choice of technologies. For example, thermal dispersion might work best in a dirty process gas, like biogas, because this technology provides no-moving-parts reliability, direct mass flow measurement, and wide range ability. However, positive displacement might be the best technology choice for the custody transfer of natural gas.

An Instrument Specification Sheet is a good place to find information that will help select the most appropriate flow meter technology for an application. This sheet identifies the application's process temperature and pressure, gas composition, piping configuration, accuracy requirements, and more.

Now forward your application information to vendors that offer the most appropriate flow meter technology. Be sure to include as much information about the application as possible and highlight your realistic performance expectations. Do not request 0.5 percent accuracy if the application needs only 5 percent accuracy. Ask these vendors to evaluate your application and provide a product recommendation. Use the information you receive to revise your specification (if necessary), finalize your preferred vendor list, and prepare your request-for-quote.

FCI flowmeters
Contact Flow-Tech for any flow meter application you may have. Our support engineers are ready to help.

In Maryland - 410-666-3200
In Virginia - 804-752-3450
https://flowtechonline.com
